# Localino

Localino is an indoor localization system. The implementation of Localino data can be used in Eliona for asset tracking. This allows any assets to be equipped with a tracker and then tracked and located on a floor plan in Eliona.

{% hint style="info" %}
The configuration of the Localino data can currently only be done at the database level. However, the Eliona support team will be happy to assist you with the configuration.
{% endhint %}

### **App configuration**

**Configuration parameters:**

| Column           | Description                                       | Initial value              |
| ---------------- | ------------------------------------------------- | -------------------------- |
| **id**           | Primary key                                       | \<set automatically>       |
| **displayname**  | Name of the Localino system                       | "In-house localino server" |
| **ip**           | IP address of the server                          | 213.160.48.45              |
| **port**         | Used IP port                                      | 8888                       |
| **action\_port** | Used action port                                  | null                       |
| **enable**       | Activation status                                 | true                       |
| **tls**          | Use of TLS (Transport Layer Security)             | false                      |
| **proj\_id**     | Eliona project ID for creating tracker assets     | 1                          |
| **asset\_id**    | ID of the parent asset (e.g. "LOCALINO trackers") | null                       |

<figure><img src="https://content.gitbook.com/content/Nyvwhz1kEMXcHf4HLuZ8/blobs/bNjkeX8IeiJtkr8FUNIq/0864DD6F-0F9E-4980-943B-CB2513159EF6.png" alt=""><figcaption></figcaption></figure>

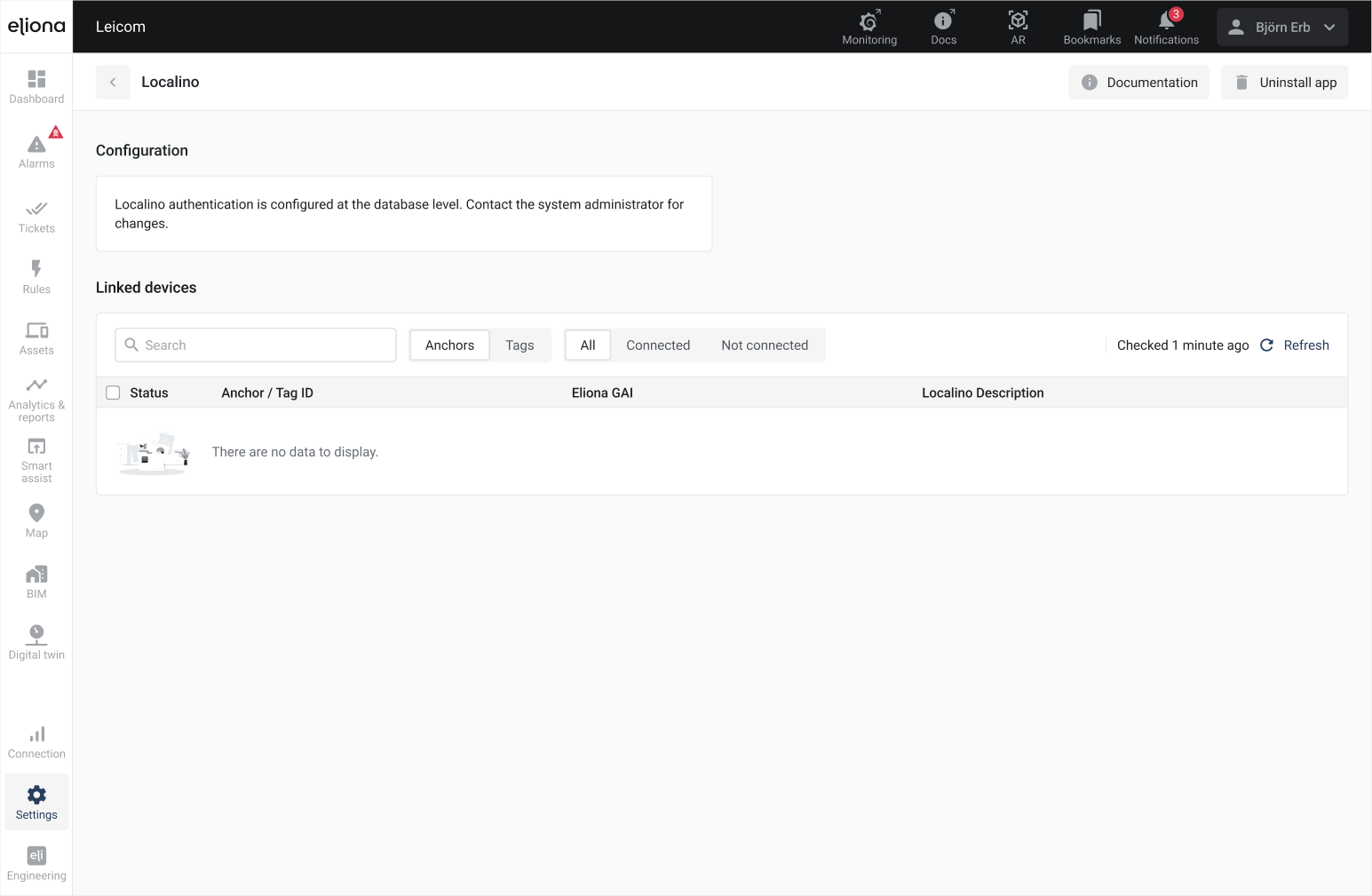

If the Localino service is configured, you will see all devices of your Localino system under Settings>Apps>Localino. All devices can now be linked to assets in your Eliona system and then used in your Eliona project. Click <img src="https://content.gitbook.com/content/Nyvwhz1kEMXcHf4HLuZ8/blobs/ZtpzOCQceJgKwCvZWDXj/A7BDACEA-C441-4537-AA12-006F0EC77F47.png" alt="" data-size="line">, to create a new asset for the tracker.&#x20;

**Link tracker**

* Click <img src="https://content.gitbook.com/content/Nyvwhz1kEMXcHf4HLuZ8/blobs/2PSiKw7iraaQXCtpYsio/60467D47-A7BF-4E57-9809-F9680F9DB406.png" alt="" data-size="line">, to link the Localino tracker with an Eliona asset.
* Click <img src="https://content.gitbook.com/content/Nyvwhz1kEMXcHf4HLuZ8/blobs/xzzIQNYb1pCwQeYGWDtx/E7D66159-08A5-457C-84A2-178B1383A76D.png" alt="" data-size="line">, to remove the link.
* Click <img src="https://content.gitbook.com/content/Nyvwhz1kEMXcHf4HLuZ8/blobs/jtQ5l5kXPel7xSwKpqcq/9A755CC3-D855-49D1-97E6-5D0EF6ADF542.png" alt="" data-size="line">, to delete the tracking asset.
* Click <img src="https://content.gitbook.com/content/Nyvwhz1kEMXcHf4HLuZ8/blobs/JREBNuNrIRapdeJlG9zy/FE132380-009B-4A8D-A0C7-A7465DC58CF7.png" alt="" data-size="line">, to remove the anchor.

**Coordinate data**

The position data (coordinates) of the trackers is sent to Eliona in real time as soon as the tracker’s location changes. These updates are displayed on the floor plan in Eliona.

#### **Device information**

In addition to the coordinates, the Localino system transmits important device information, such as the battery level of the tracker. This data is updated every 5 minutes.

### Usage example

<figure><img src="https://content.gitbook.com/content/Nyvwhz1kEMXcHf4HLuZ8/blobs/x8fAPEiK2lvshYepzvoN/32079786-BD01-4E78-86DA-EBE85DEC66F2.png" alt=""><figcaption></figcaption></figure>

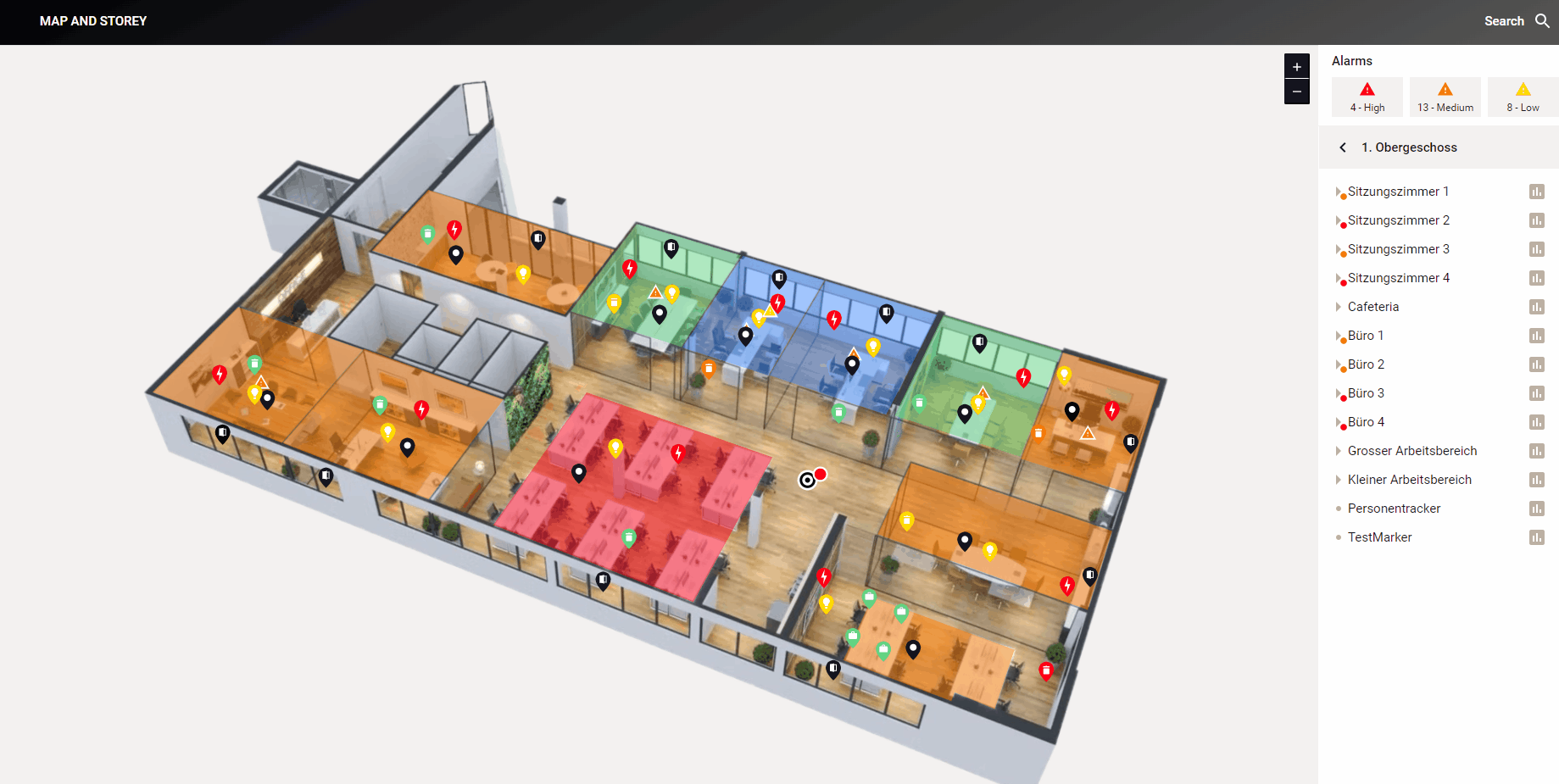

Imagine that you attach a [Localino tracker to a flipchart](https://docs.buildings.ability.abb/collection/english-v14/documentation/more-functions/tracking#tracker-an-ein-asset-heften). On the floor plan in Eliona, you can now track live where the flipchart is located in the building and check its location at any time.
