Alarm

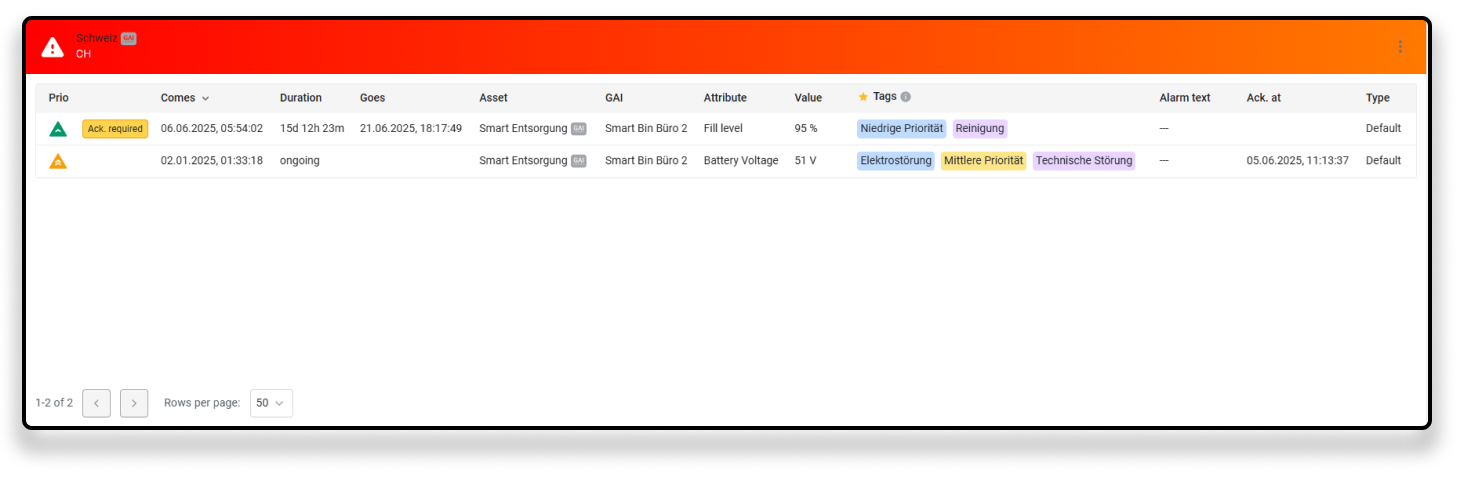

About the "Alarm" widget, you can monitor a single asset for alarms.

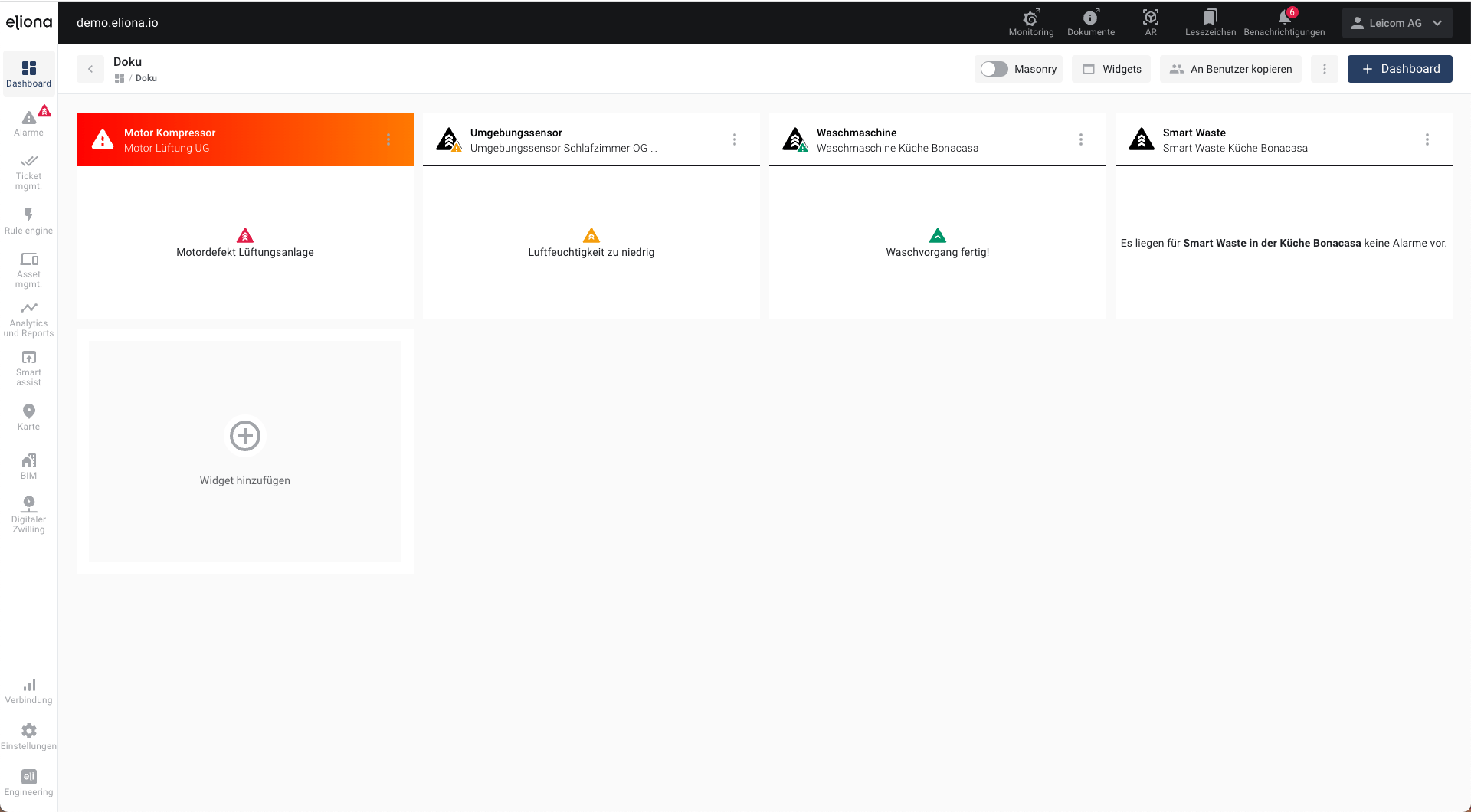

A dashboard with 4 alarm widgets. From left to right: High priority, medium priority, low priority, no alarm present.

When should this widget be used?

This widget should be used if you want to monitor a single asset for alarms.

If you want an overview of all active alarms, use the widget -> Alarm overview

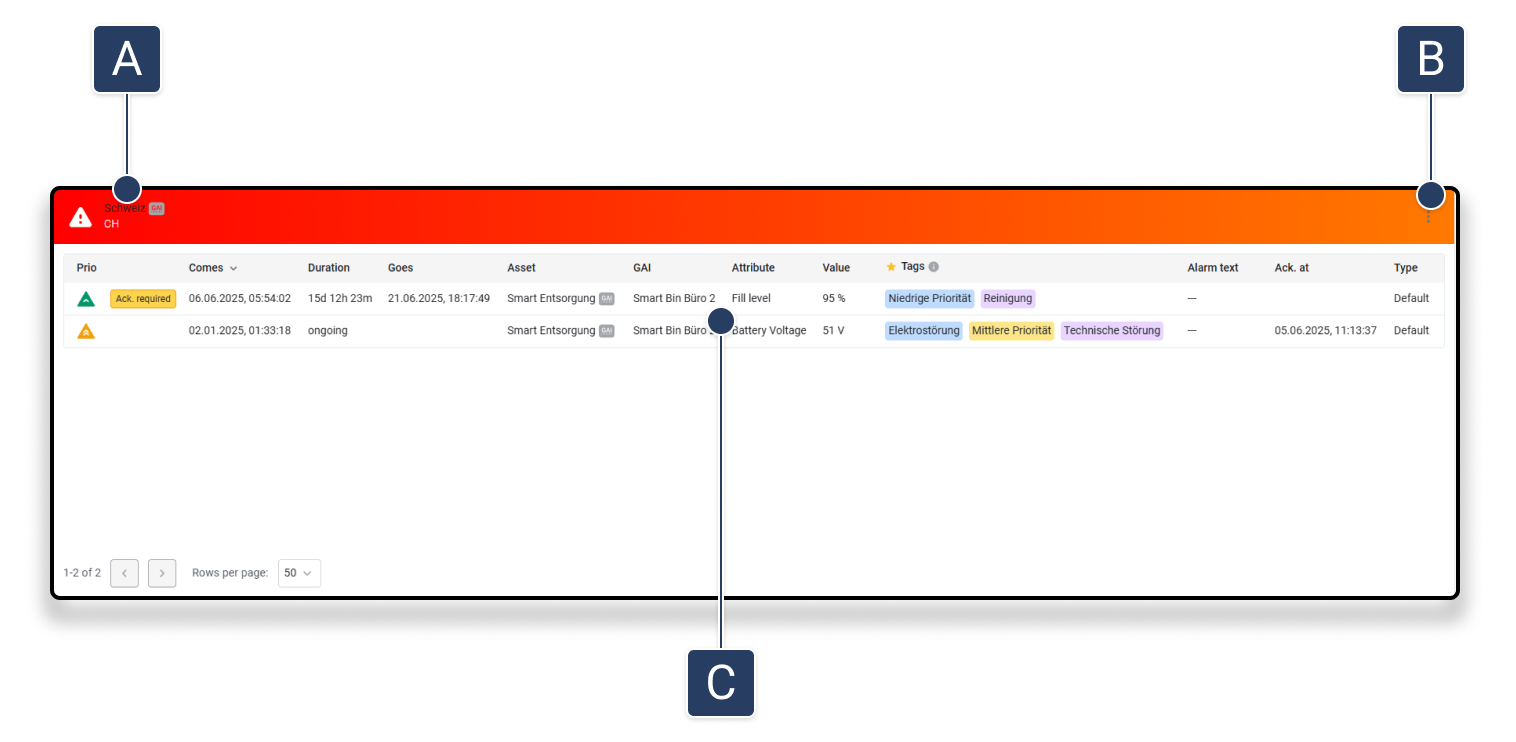

Overview

[A]	Header with status display	Displays the alarm status. In the current image, an alarm with high priority is shown.
[B]	More options	Displays additional options.
[B]	Alarm list	The alarms for the asset are displayed here in a list.

Configure alarm widget

The alarm widget displays a tabular overview of all alarms for one or more selected assets.

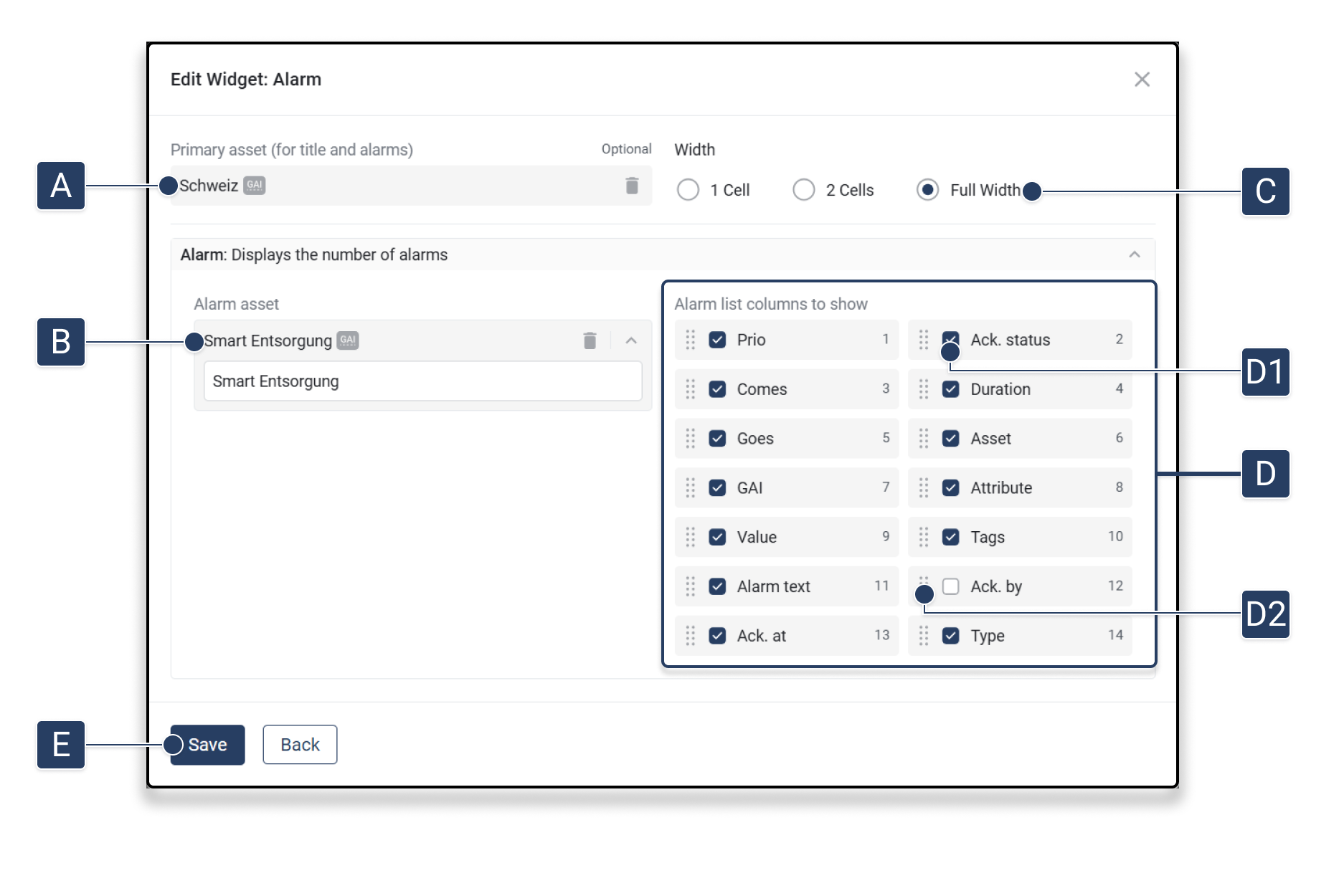

How to configure the widget:

1. Select the Primary asset [A] ◈ This asset is displayed in the widget title. Selection is optional.

2. Add the desired alarm asset [B]. ◈ Alarms from this asset are displayed in the widget. ◈ Multiple assets are possible.

3. Choose the Widget size [C] ◈ Available options are 1 Cell, 2 Cells or Full Width.

4. Select the columns of the alarm list to be displayed [D] ◈ Enable or disable individual columns with a checkmark [D1]. ◈ The display order of the columns can be changed by drag & drop [D2].

5. Click on [E] Save, to apply the configuration ◈ The widget now appears in the dashboard with the selected display.
