# Timetable

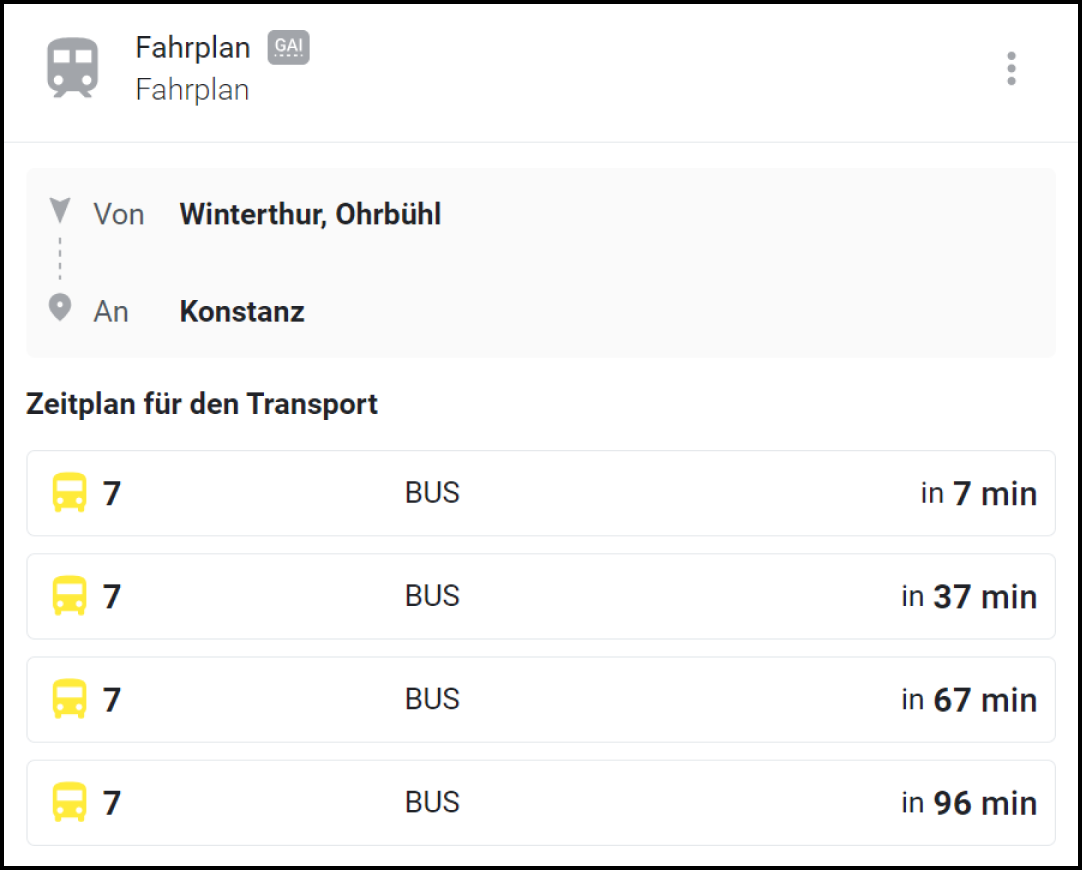

The "Timetable" widget shows departure times from a starting point and optionally to a destination. Only SBB (Swiss Federal Railways) data is displayed.

<figure><img src="https://content.gitbook.com/content/Nyvwhz1kEMXcHf4HLuZ8/blobs/s30Ply7vSkVMVWAlKY6q/Fahrplan%20(8).png" alt=""><figcaption></figcaption></figure>

## When should this display be used?

This display should be used when you want to show departure times for a specific starting point and optionally also visualize the connections to a selected destination.

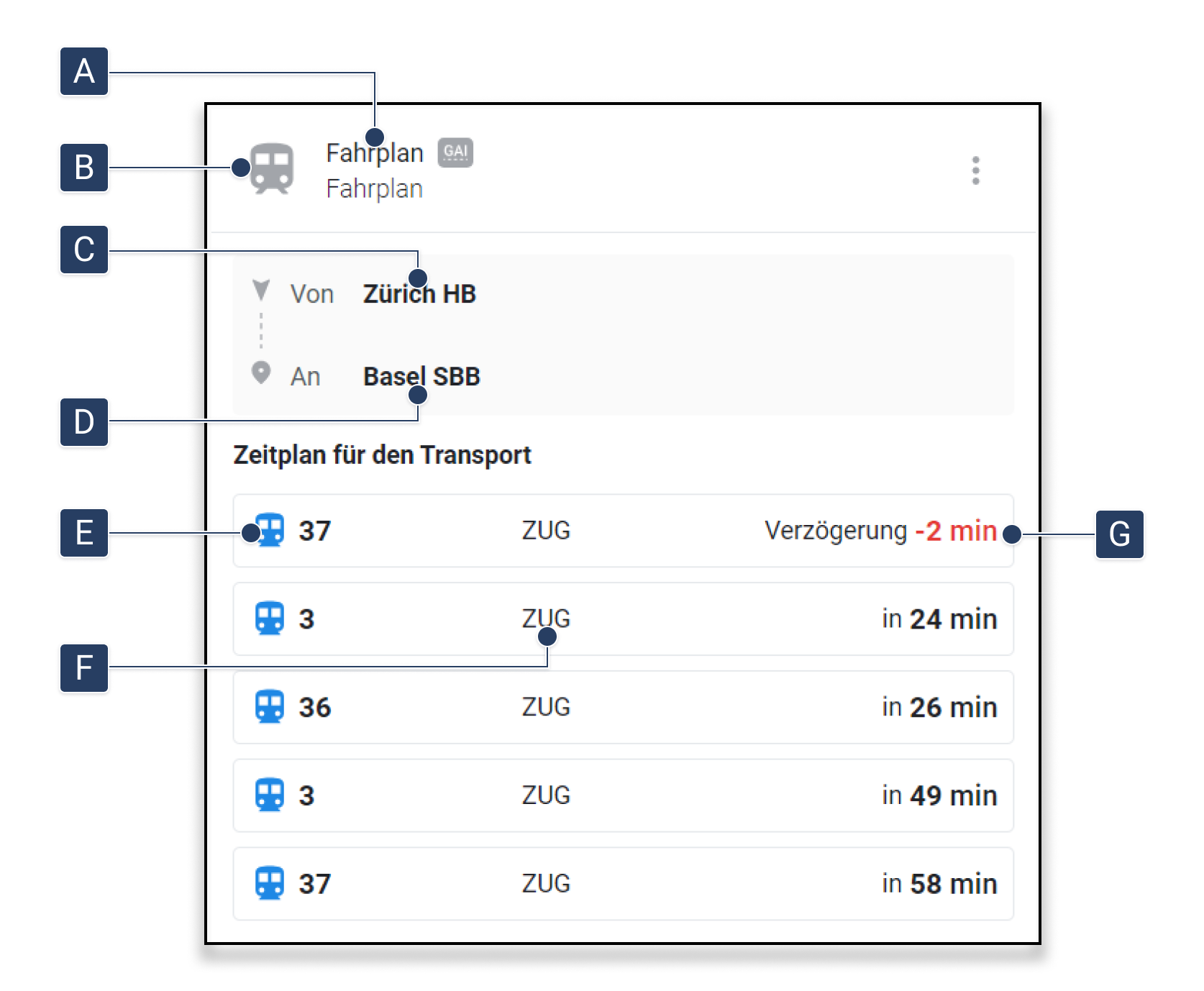

## What is displayed?

<figure><img src="https://content.gitbook.com/content/Nyvwhz1kEMXcHf4HLuZ8/blobs/VcL85Zsg5B6PpTzMayOM/Fahrplan%20(9).png" alt=""><figcaption></figcaption></figure>

<table data-header-hidden data-full-width="false"><thead><tr><th width="90"></th><th width="183"></th><th></th></tr></thead><tbody><tr><td><strong>[A]</strong></td><td>Title bar</td><td>The title of the widget. Can be set during widget configuration under "Primary Asset".</td></tr><tr><td><strong>[B]</strong></td><td>Icon</td><td>Widget icon</td></tr><tr><td><strong>[C]</strong></td><td>Starting point</td><td>Shows the route's departure location.</td></tr><tr><td><strong>[D]</strong></td><td>Destination</td><td>Shows the destination if defined.</td></tr><tr><td><strong>[E]</strong></td><td>Vehicle number</td><td>The vehicle number, e.g. bus or train number.</td></tr><tr><td><strong>[F]</strong></td><td>Mode of transport</td><td>The type of transport, e.g. bus, train or tram.</td></tr><tr><td><strong>[G]</strong></td><td>Arrival in min</td><td>The remaining time until the vehicle arrives, in minutes.</td></tr></tbody></table>

## Configure widget

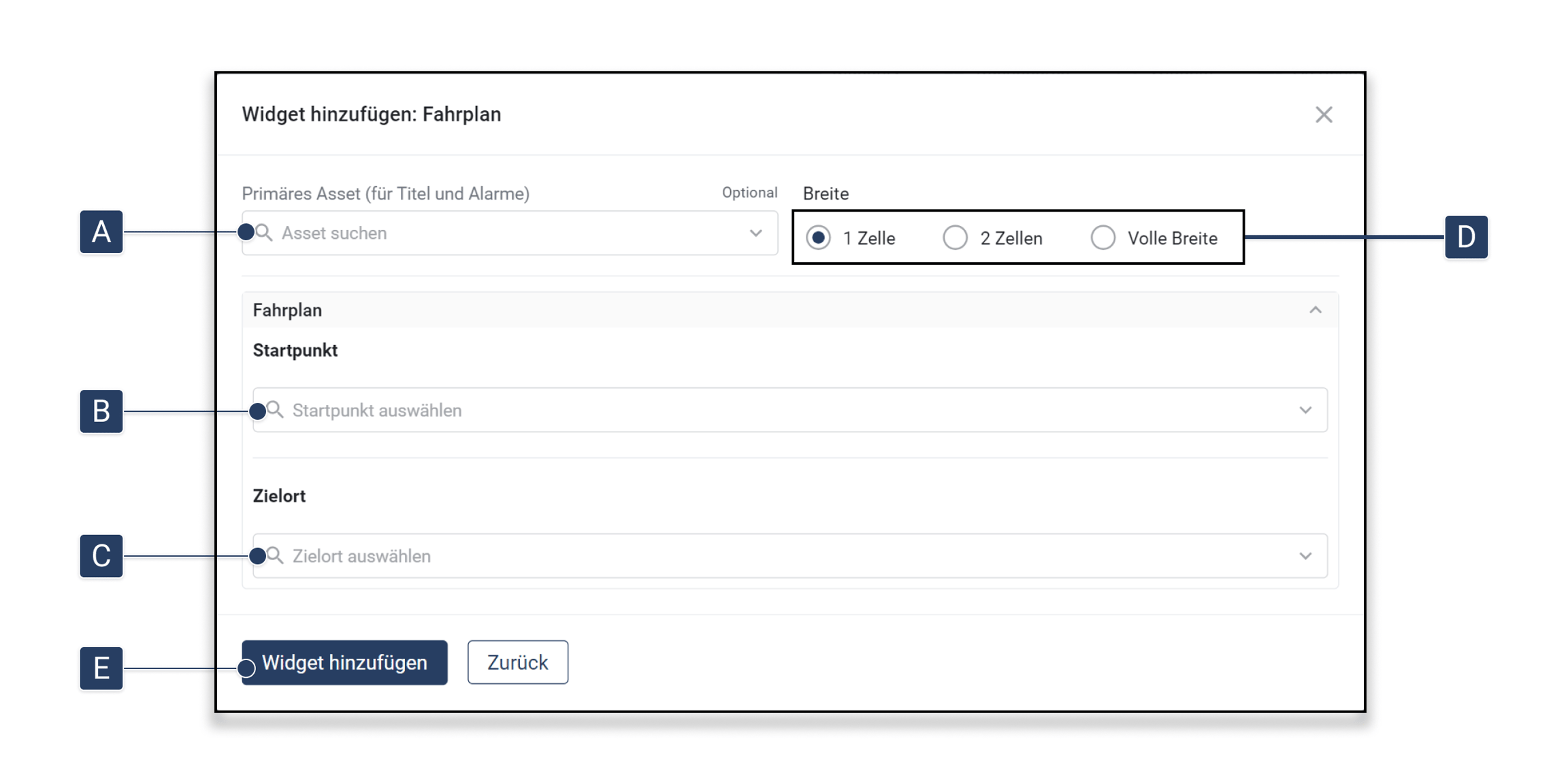

<div data-full-width="true"><figure><img src="https://content.gitbook.com/content/Nyvwhz1kEMXcHf4HLuZ8/blobs/Fi3AhgILpLT8QzDtWCYR/Fahrplan%20(4).png" alt=""><figcaption><p>Fig. 3 Configure widget</p></figcaption></figure></div>

1. Make sure you are in the **"Dashboard"** menu.
2. Add the route schedule widget as [↗ Custom widget.](/collection/english-v14/documentation/widgets/benutzerdefinierte-widgets.md#schritt-fur-schritt-ein-benutzerdefinertes-widget-erstellen)
3. Click on **«Add widget»**.
4. Click on «**Custom»**.
5. Click on **“Your custom timetable widget”**.

   ▷ The window **"Fig. 3 Configure widget"** appears
6. Optional: Select a **\[A]** the primary asset
7. Enter in **\[B]** the **Starting point** and click on one of the suggested places.

   ◈ If only the starting point is selected, all departures leaving from this starting point are displayed.
8. Optional: Enter in **\[C]** the **Destination** and click on one of the suggestions.

   ◈ If the destination is also selected, only departures from the starting point to the destination are displayed.
9. Select in **\[D]** how much space the widget should take up on the dashboard.
10. Click on **\[E]**

    ▷ The widget appears on the dashboard.


---
