Configure an alarm

To configure an alarm, you must create a rule. When the conditions of this rule are met (e.g., temperature rises above 25 ºC), an alarm is created.

The full documentation can be found in the chapter ↗ Alarms, Rules, Escalations

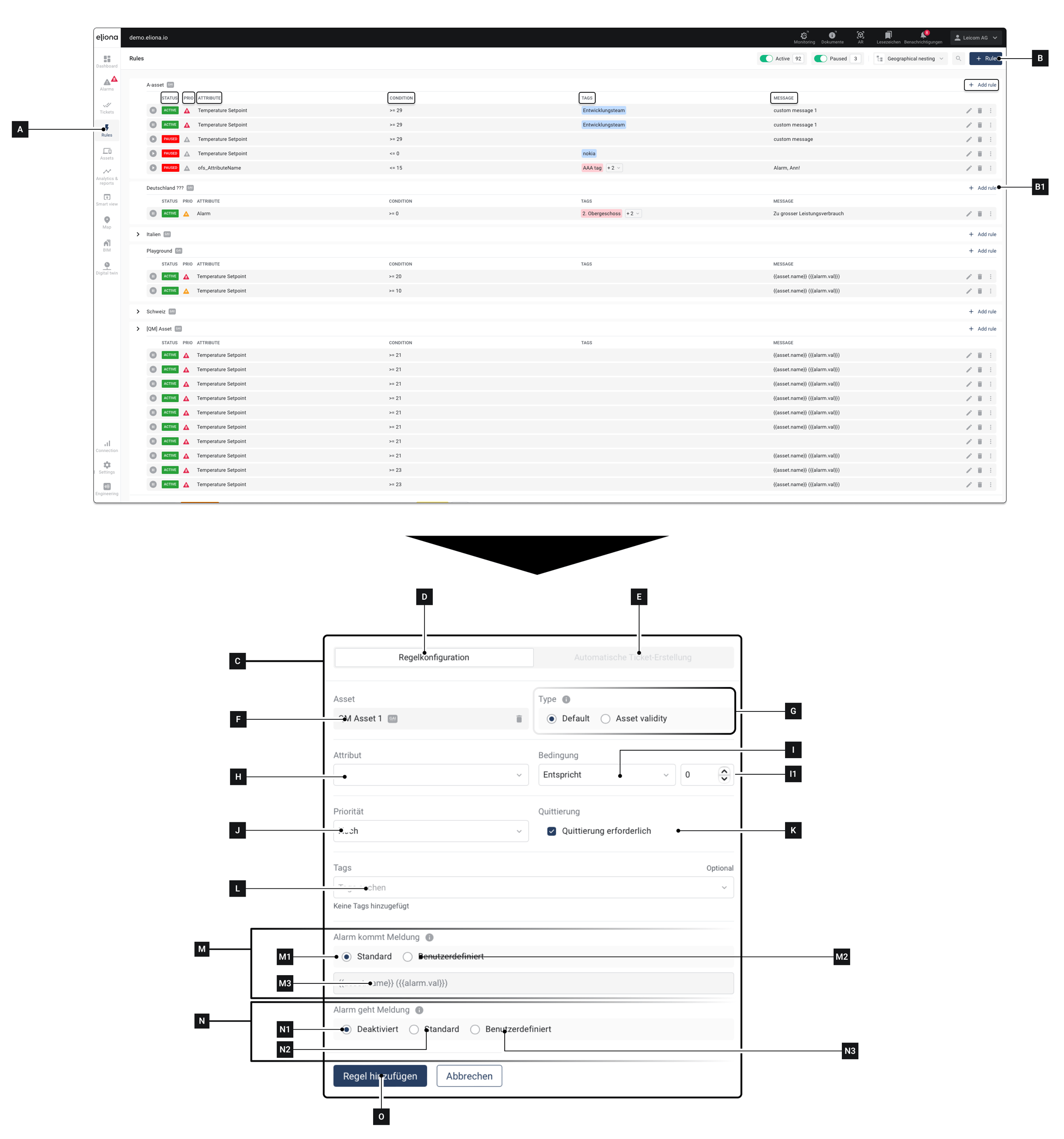

1. Click on RULES [A] ▷ The rule overview opens

2. Click on [B] ▷ The window Add rules [C] opens

3. Enter in [F] the asset to which the rule refers.

4. Enter in [G] the type of alarm.

5. Enter in [H] the attribute to which the rule refers.

6. Enter in [I] and [I1] the condition that must be met for an alarm to be triggered.

7. Enter in [J] which priority an alarm triggered by this rule will have.

8. Enter in [K] whether an alarm triggered by this rule must be acknowledged.

9. Optional: Assign the rule in [L] one or more tags.

10. Configure in [M] which message should appear when the alarm is triggered.

11. Click Add rule [O], to create the rule.
