# In einem BIM navigieren

## Überblick

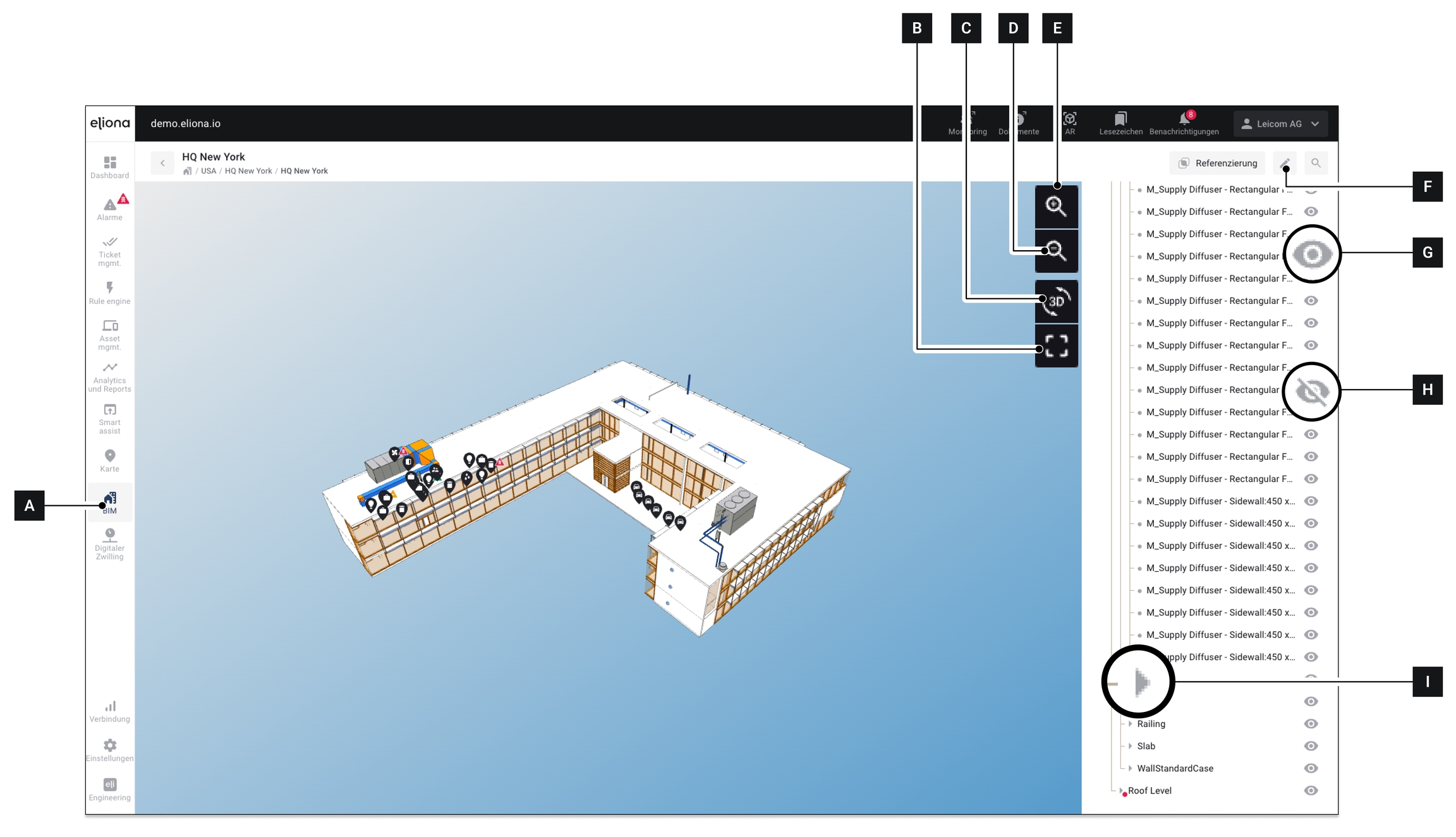

<div data-full-width="true"><figure><img src="https://content.gitbook.com/content/Nyvwhz1kEMXcHf4HLuZ8/blobs/Gy8U0cLSGpPlQWXGZK8A/1B260C9A-8BA9-4572-8004-E7E4679883ED.png" alt=""><figcaption><p>Abb. 1 – Überblick über ein geöffnetes BIM</p></figcaption></figure></div>

## Schwenken

<div data-full-width="true"><figure><img src="https://content.gitbook.com/content/Nyvwhz1kEMXcHf4HLuZ8/blobs/UKFNfHcVKUYJEtdnJ2Mm/BIM.gif" alt=""><figcaption></figcaption></figure></div>

Halten Sie die Taste **Shift** und die **Linke Mauste** gedrückt und bewegen Sie die Maus nach links/rechts/oben/unten

## Rotieren

Halten Sie die **Linke Mauste** gedrückt und bewegen Sie die Maus nach links/rechts/oben/unten

### Zoomen

#### Freier Zoom

Bewegen Sie das **Mausrad** nach oben/unten um in das Modell hinein- oder hinauszuzoomen.

### Zoom per Tasten

Sie können mit den Schaltflächen **\[D]** und **\[E]** schrittweise zoomen.

#### Zoom per Auswahl

Wenn Sie eine [-> Komponente auswählen](#komponenten-auswaehlen) zoomen Sie automatisch an diese Komponente heran.

## Komponenten einblenden/ausblenden

Sie können einzelne Teile des Modells einblenden und ausblenden. Das ist besonders nützlich, um Komponenten zu sehen, die sonst verdeckt wäre, z.B. durch ein Dach.

Klicken Sie in der Seitenleiste auf das Symbol **\[G]** bzw. **\[H]**, um die Sichtbarkeit umzuschalten.

## Komponenten auswählen

<figure><img src="https://content.gitbook.com/content/Nyvwhz1kEMXcHf4HLuZ8/blobs/OGGyCE6S41f6u1tNIROA/00216000.gif" alt=""><figcaption></figcaption></figure>

Klicken Sie auf eine Komponente, um die Komponente auszuwählen.

Das Auswählen einer Komponente hat folgende Auswirkungen:\
▷ Es wird an die Komponente herangezoomt\
▷ Die Komponente wird in der Seitenleiste fokussiert

### Komponente abwählen

Um die Auswahl einer Komponente wieder aufzuheben, klicken Sie in einen Bereich außerhalb des BIMs, z.B. in den blauen Hintergrund.


---
