# Sankey-Diagramm

Sankey-Diagramme eignen sich besonders gut, um Zu- und Abflüsse zu einer Menge darzustellen.

Da die Zu- und Abflüsse durch mengenproportional dicke Pfeile dargestellt werden, können z.B. Energieflüsse intuitiv verständlich gemacht werden.

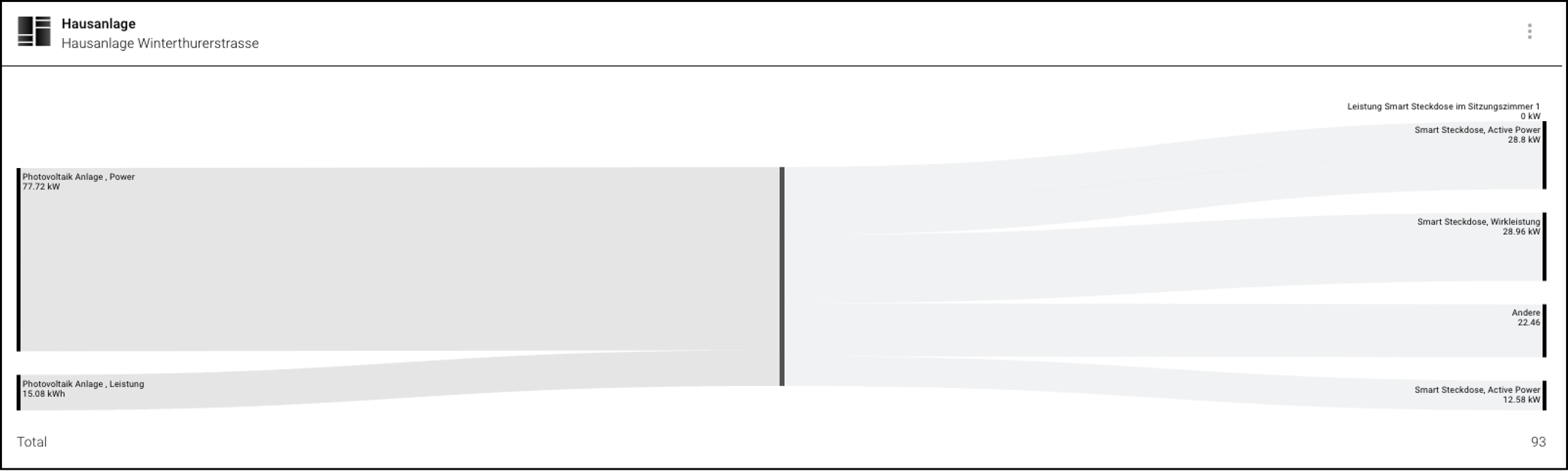

<div data-full-width="true"><figure><img src="https://content.gitbook.com/content/Nyvwhz1kEMXcHf4HLuZ8/blobs/VUHr2galUFnXjsDwZqLv/A86A460A-F303-48CF-BD3B-9B7B4FBEB064.png" alt=""><figcaption><p>Ein Sankey-Diagramm mit 2 Zuflüssen (links) und mehreren Abflüssen (rechts).</p></figcaption></figure></div>

## Wann sollte diese Darstellung genutzt werden?

Das Sankey-Diagramm sollte genutzt werden, wenn Sie Energie- und Materialflüsse darstellen möchten. Sankey-Diagramme sind hervorragend geeignet, um darzustellen wie wiel von der Gesamtleistung von einzelnen Verbrauchern beansprucht wird.

## Widget konfigurieren

{% @supademo/embed url="<https://app.supademo.com/demo/_yIBx6mWTACoiIBCX7jqX>" demoId="\_yIBx6mWTACoiIBCX7jqX" fullWidth="true" %}

1. Vergewissern Sie sich, dass Sie sich im Menü "Dashboard" befinden
2. Klicken Sie auf "Widget hinzufügen"
3. Klicken Sie auf "View"
4. Klicken Sie auf "Sankey-Übersicht"
5. Wählen Sie das Primäre Asset. Der Name dieses Assets wird in der Titelzeile des Widgets erscheinen.
6. Wählen Sie ein Asset, das als Quelle agieren soll.
7. Wählen Sie das Attribut der Quelle.
8. Wählen Sie, ob der Aktuelle Wert oder der Aggregierte Wert für Berechnungen genutzt werden soll.
9. Optional: Wiederholen Sie die letzten Schritte, um eine weitere Quelle zu erstellen.
10. Wählen Sie ein Asset, das als Senke agieren soll. Eine Senke kann z.B. ein Verbraucher sein.
11. Wählen Sie das Attribut der Senke.
12. Wählen Sie, ob der Aktuelle Wert oder der Aggregierte Wert für Berechnungen genutzt werden soll.
13. Optional: Wiederholen Sie die letzten Schritte, um eine weitere Senken zu erstellen.
14. Optional: Wählen Sie, wie viel Raum Ihr neues Widget auf dem Dashboard einnehmen soll.
15. Klicken Sie auf "Widget hinzufügen"


---
