📑Attribute functions

In the Attribute Sidebar You can view and configure the properties of an attribute in detail. Here we explain how to access this sidebar and what the individual sections mean.

To open the attribute sidebar:

1. Navigate to the desired asset via: Assets → [Select asset] ▷ The asset detail view opens.

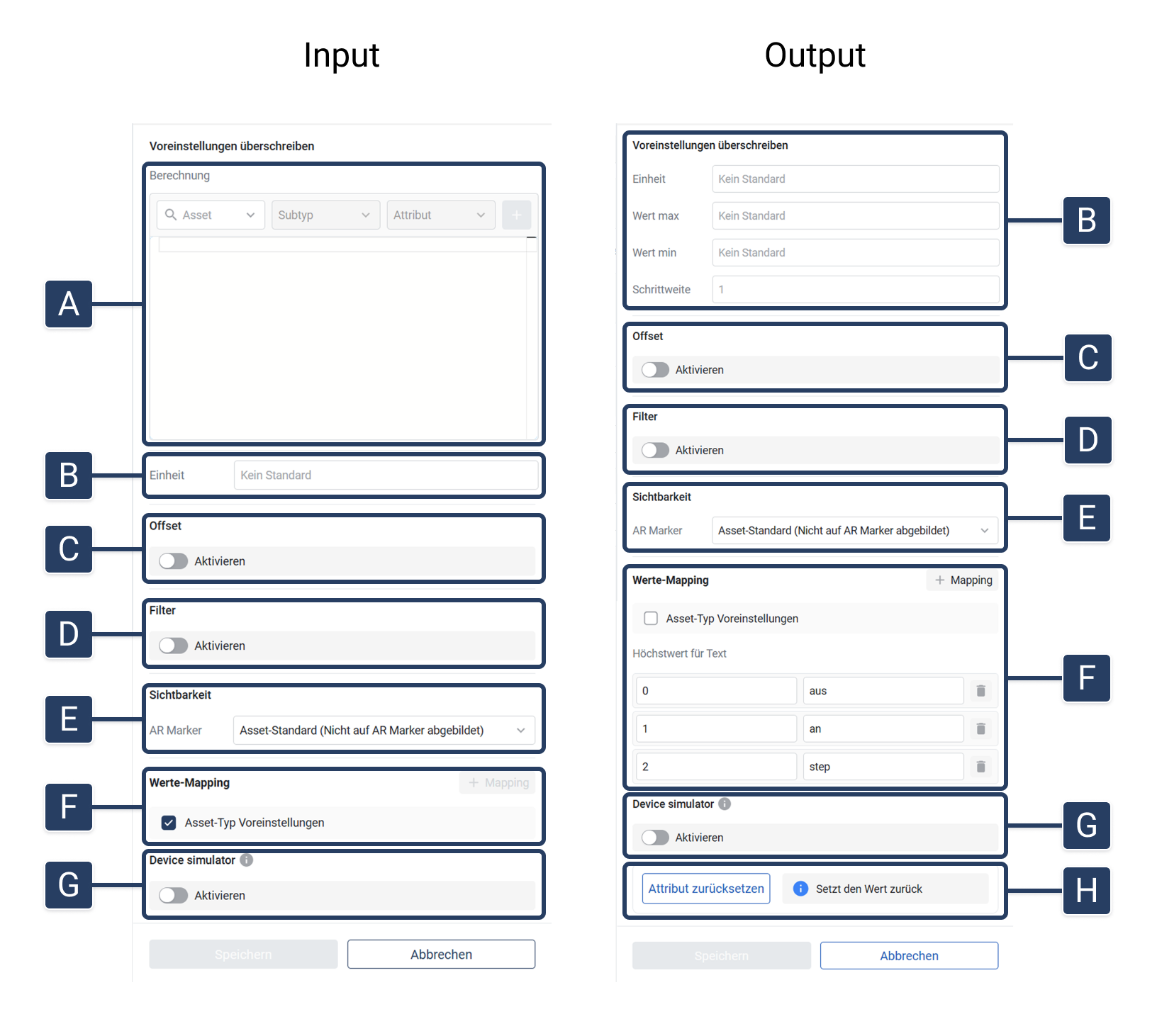

2. Click any attribute in the attribute values table. ▷ The attribute sidebar appears on the right side.

[A]	Calculator	Here you define formulas for calculating the attribute value from other attributes. -> Calculate values: The Calculator
[B]	Unit & value range	Unit, minimum/maximum value, and step size can be configured. More information under: -> Add attributes to the asset template
[C]	Offset	Enable a static offset that is added to the value. -> Configure a meter change
[D]	Filter	Allows enabling filters for incoming values. -> Filter
[E]	Visibility	Configure the attribute's visibility in AR markers. -> Augmented Reality
[F]	Value mapping	Assign readable text to numeric values (e.g., 0 = off, 1 = on). -> Value mapping for attributes
[G]	Device Simulator	Enable the simulation for testing purposes. -> Device simulator
[H]	Reset attribute	Resets the attribute value to the default. -> Reset output attribute
